Haze Transmittance Meter Brief Introduction
Good Supplier Transmittance Haze Meter For Plastic Film

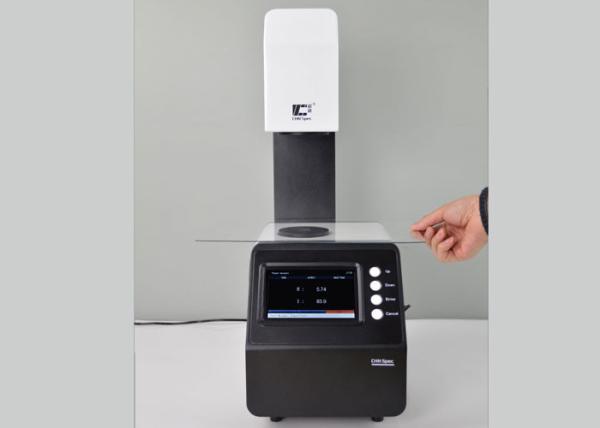

TPU film is a dynamic substrate that can becustomized for a variety of performance applications. Transparency is an important character for TPU film. Our haze transmittance meter TH-100 is designed for haze and transmittance measurment for plastic sheets and films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials. It does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers’ measurement requirement.
Glass Haze Meter Transmittance Haze Meter Technical Data
| Model | Haze Meter TH-100 |
| Light Source | CIE-A,CIE-C,CIE-D65 |
| Standards | ASTM D1003/D1044,ISO13468/ISO14782, JIS K 7361/ JIS K 7136, GB/T 2410-08 |
| Parameters | HAZE, Transmittance(T) |
| Spectral Response | CIE Luminosity function Y/V (λ) |
| Geometry | 0/d |
| Measurement Area/ Aperture Size | 16.5mm/21mm |
| Measurement Range | 0-100% |
| Haze Resolution | 0.01 |
| Haze Repeatability | ≤0.1 |
| Sample Size | Thickness ≤145mm |
| Memory | 20000 value |
| Interface | USB |
| Power | DC24V |
| Working Temperature | 10-40 ℃ (+50 – 104 °F) |
| Size (LxWxH) | 310mm X 215mm X 540mm |
Hazemeter Advantages
1). It conforms to international standards ASTM D 1003,ISO 13468,ISO 14782, JIS K 7361 and JIS K 7136.
2). Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
3). It can realize transmittance compensation measurement which can provide higher accuracy test result.
4). Open measurement area, no limit on sample size.
5). Instrument is with 5.0 inches TFT display screen with good human-computer interface.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials.
7). It adopts LED light source whose lifetime can reach 10 years.
Hazemeter Application
Hazemeter Packing List
| Qty. | Name | Qty. | Name |
| 1 | Main Instrument | 1 | Power Adaptor |
| 1 | Operating Manual | 1 | USB Cable |
| 1 | Haze QC Software | 1 | 0% Calibration Cover |
| 1 | Compensation Port Cover | 1 | Warranty Card |
